July Feature Update Summary

1.Basic Operations
Interactive Optimizations

2.Rendering & Lighting
AI Rendering 2.0 & Frame Drawing

3. Customization
3.1 Dimension Drawing: Milling Edge Distance Display
3.2 Custom Fitting Add Cover Configuration
3.3 Ceiling & Wall Modules: Master Image Rendering
3.4 Tiling Customiztion Library Layout Optimization

4.Aluminum Doors & Windows
Sash Mid-Rail Design

5.AI Layout
5.1 AI Draw Output Optimization
5.2 Exterior Wall Annotation
5.3 Update Countertop

6.AI Video Credit Consumption

1.Basic Operations

Interactive Optimizations(for All - Optimization)
Highlights:

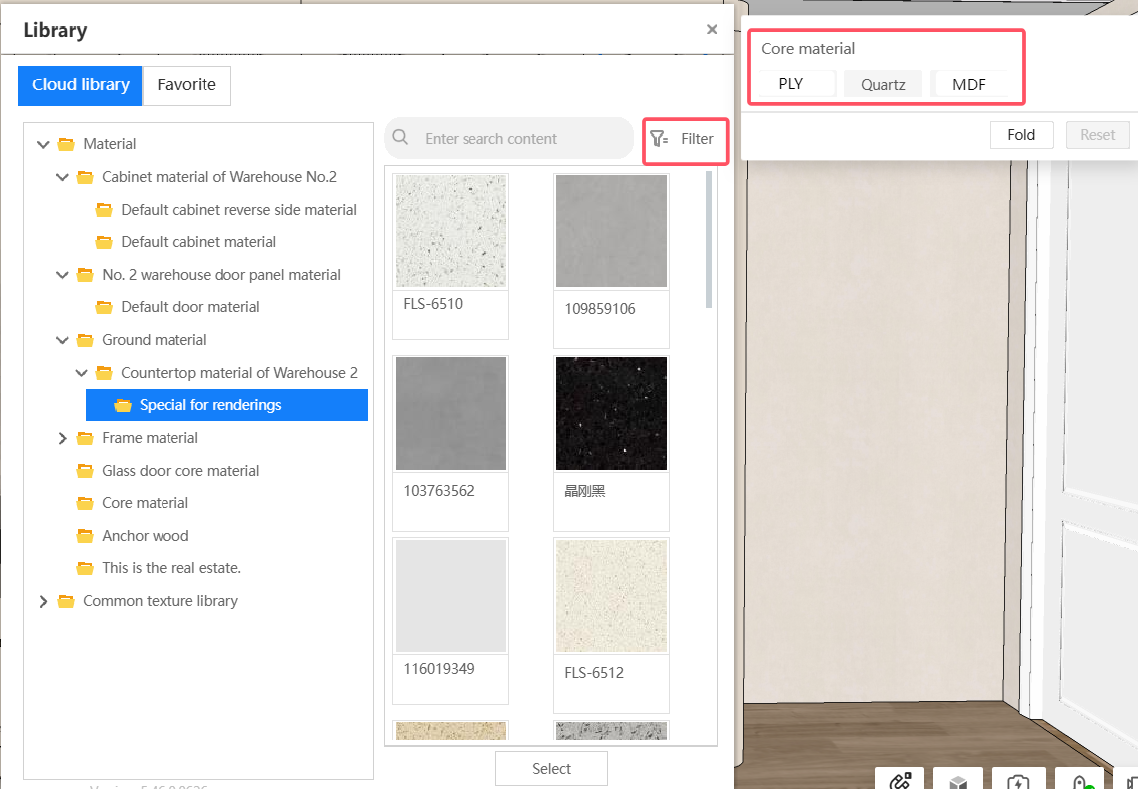

Filter icons in Custom Material Library, Door Panel Library, and Texture Library updated with "Filter" text label.

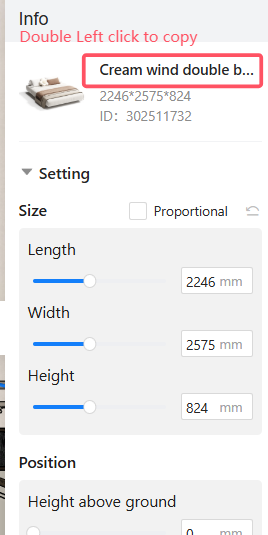

Double-clicking model names in Finished Products library now can copy the name directly.





2.Rendering & Lighting

AI Rendering 2.0 & Frame Drawing(for All - New)
Highlights:
AI Rendering 2.0: Generates highly realistic renders from material maps + text prompts, simulating light, shadow, and materials.
Frame Drawing: Converts spatial wireframes into realistic renders while preserving layout logic.
Problem Solved:
Solves deviations between renders and final builds; accelerates creative iteration (AI Rendering 2.0).
Bridges layout planning and visual detail (Wireframe-to-Image).
Feature Value:
Significantly boosts output efficiency with AIGC tools.
Steps:
1.Complete furniture layout in 3D design.

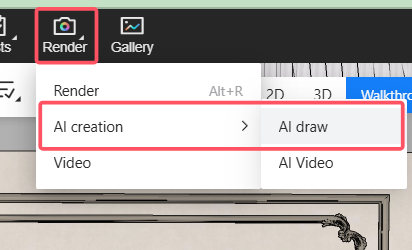

2.Navigate to Render > AI Creation > AI Draw

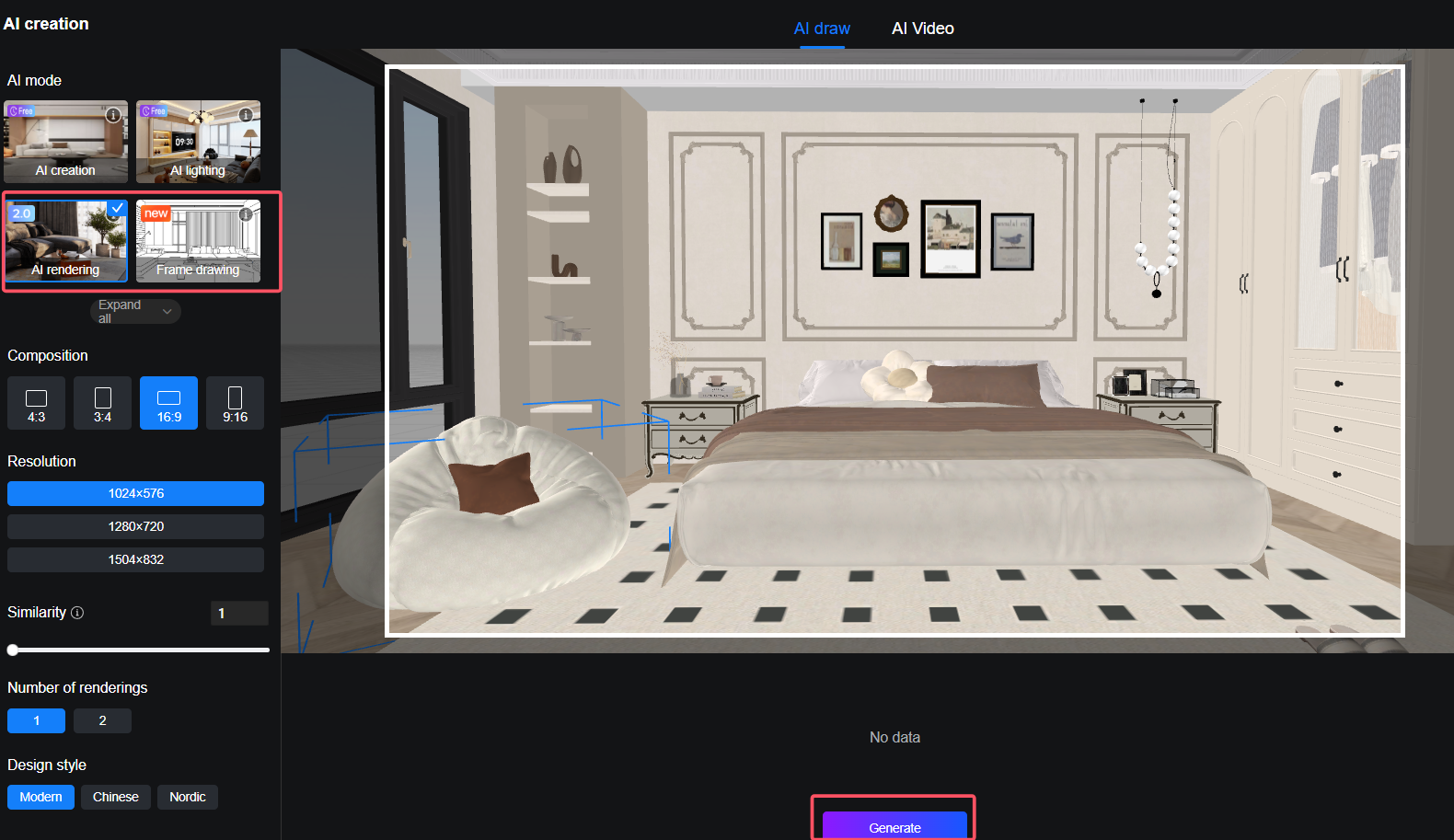

3.Select Mode: AI Rendering or Frame Drawing.
4.Choose aspect ratio & quantity, click Generate.





3. Customization

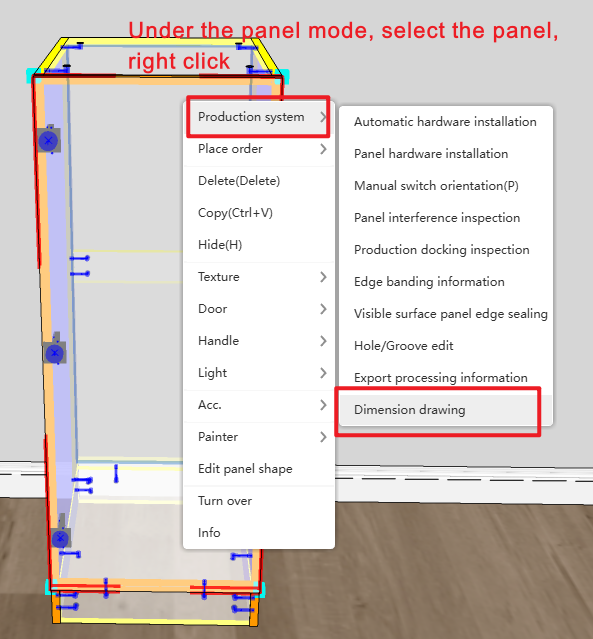

3.1 Dimension Drawing: Milling Edge Distance Display(for JEGA AiHouse Advanced - New)
Highlights:

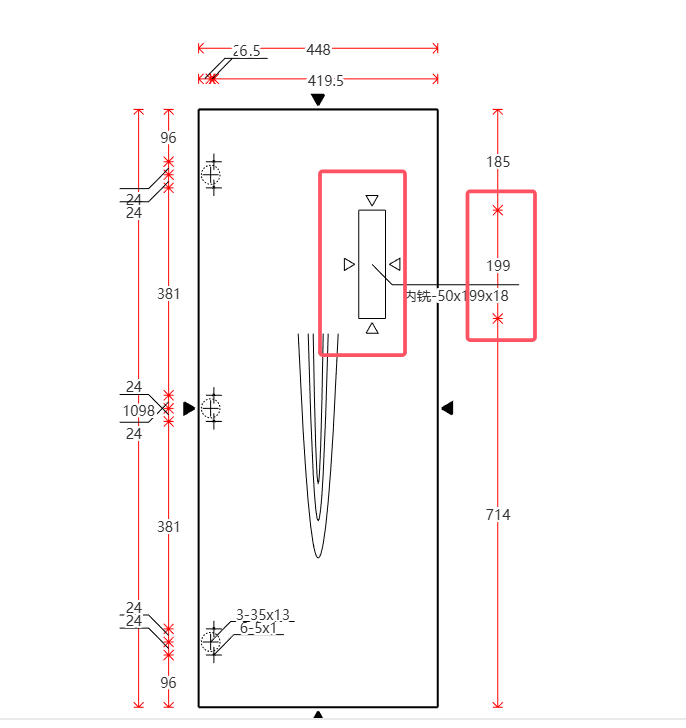

Dimension drawing now display edge distance values for milled features (e.g., light grooves, touch latches) and milled holes.
Feature Value:
Solves inability to view edge distances in dimension drawing.
Improves user convenience and functional completeness.





3.2 Custom Fitting Add Cover Configuration(for JEGA AiHouse Advanced - New)
Highlights:

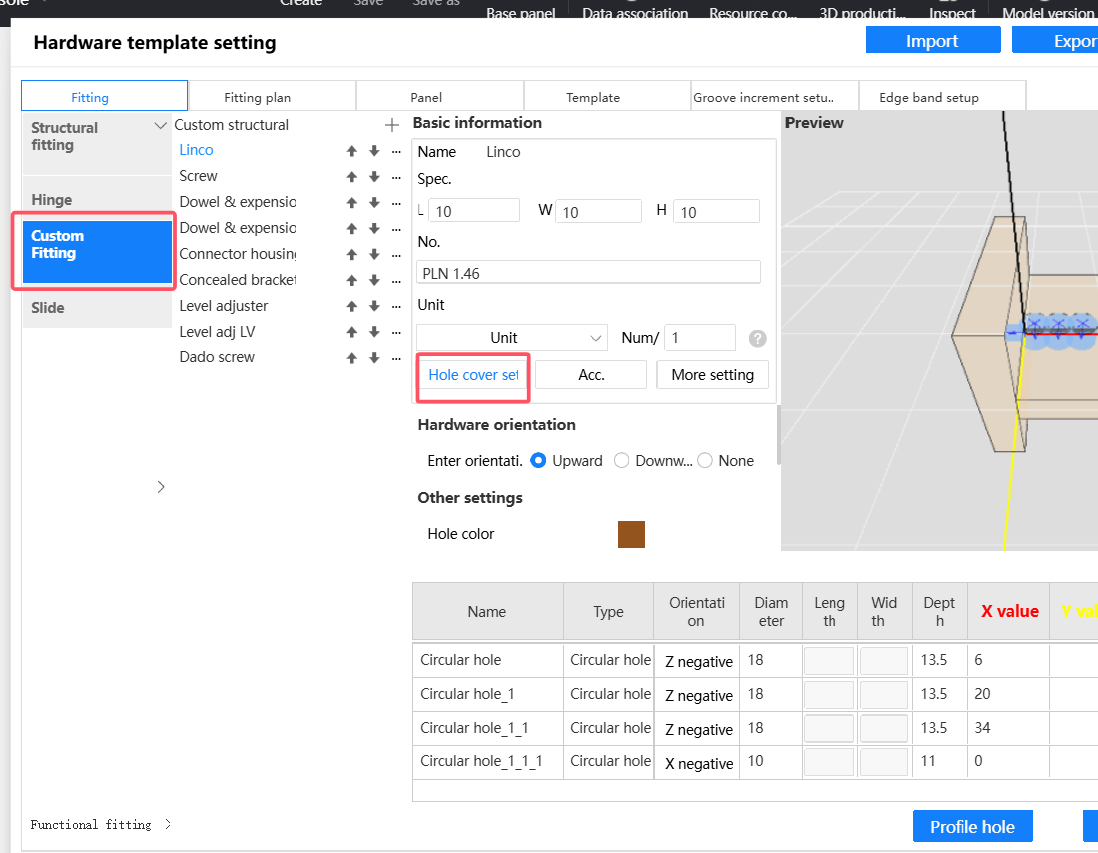

Adds cover configuration capability to custom fitting
Feature Value:
Solves previous lack of cover settings for custom fitting
Enhances functional completeness and fitting flexibility.

Note: Requires adding an "Eccentric Wheel Hole". Historical schemes can be manually renamed to include "Eccentric Wheel Hole".



3.3 Ceiling/Wall Master Image Rendering( for All - Optimization)
Highlights:
Optimizes master images for historical wall panel schemes, increasing user engagement.
Feature Value:
Solves inability to render master images for older wall panel schemes added before rendering integration.
Steps:

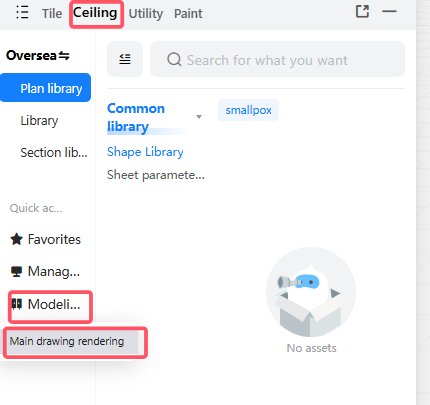

1.Open 3D scheme > Ceiling Customization

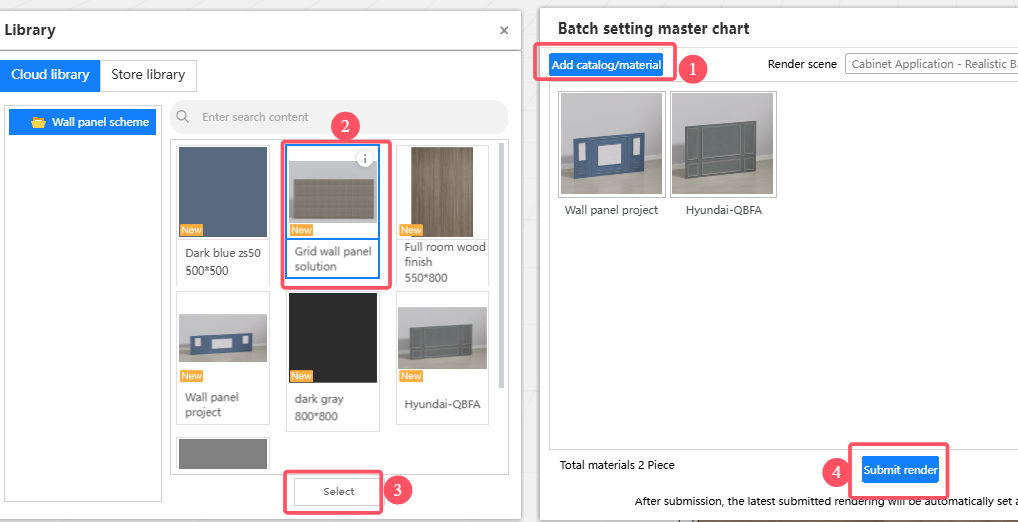

2.Go to Modeling > Main Drawing Rendering in left panel. Select scheme/category & template > Submit Render.
3.Rendered image auto-replaces master image upon completion & displays in left side library

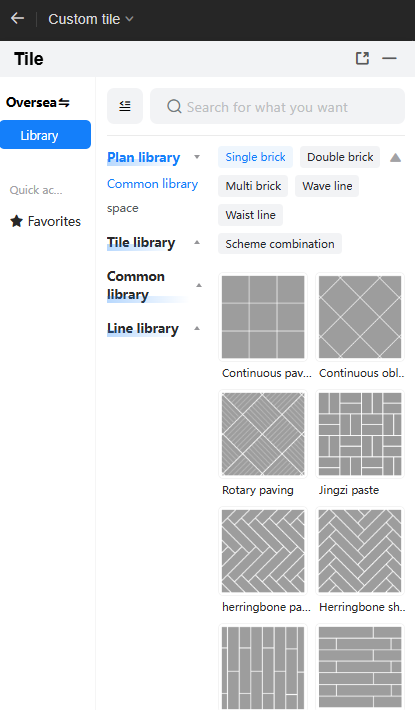

3.4 Tiling Customization Library Layout Optimization(for All - Optimization)
Highlights:
Overhauled Tiling/Ceiling & Wall immersive page for a more professional, user-aligned aesthetic and experience.
Feature Value:
Increases user satisfaction.
Affected Pages: Tiling (Waterjet Entry), Ceiling & Wall, secondary pages accessed via double-clicking walls (Wall Design) or ceilings (Ceiling Design).





4 Aluminum Doors & Windows

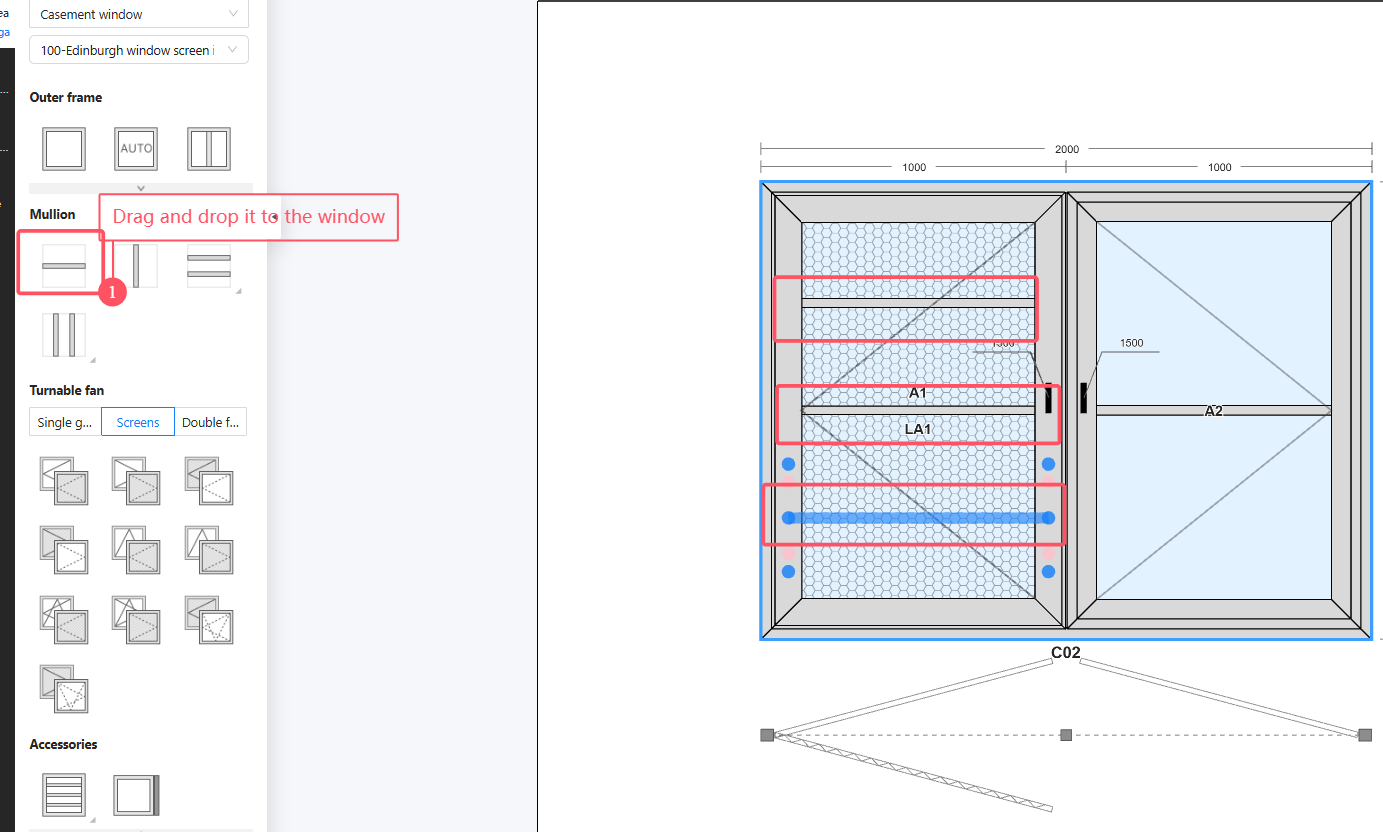

Mid-Rail Design(for All - New)
Highlights:

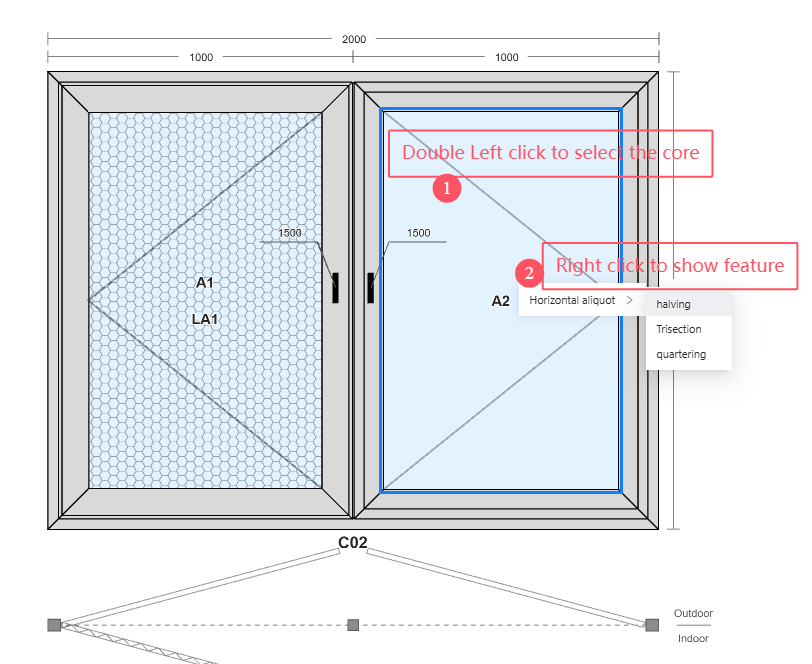

Quick Division: 1-click generation of 2/3/4 equal horizontal divisions. Auto-segments glass/screen & installs precisely.
Free Drawing: Smartly detects start/end points (frame/sash), auto-matches correct profile (Glass/Screen Mid-Rail).
Real-time Collision Detection: Highlights conflicts during mid-rail movement.
Contextual Hiding: Hide single sashes (Sliding Doors) or batch hide inward-opening sashes (Swing Doors) for complex structures.
Problem Solved:
Solves inability to add mid-rails to extra-tall sashes.
Feature Value:
Ensures structural compliance & manufacturability.
Adapts to Swing/Sliding series.
Reduces manual steps by >70%; lowers learning curve.
Prevents errors via collision detection.





5 AI Layout

5.1 AI Draw Output Optimization(for All  - Optimization）
 Highlights:
Smart Camera Angles: Generates optimal multi-scene perspectives.
Upgraded AI algorithms for higher quality.
Optimized Standard Render light templates (Living/Dining & Bedroom first; other spaces iterating).
Problem Solved:
Solves high barrier of traditional lighting/angle adjustment & long render times.
Feature Value:
Reduces manual adjustment; enables multi-angle showcases.
Real-time preview & seconds-level output for quick client communication.
Professional optical logic for true-to-life materials.
Step：

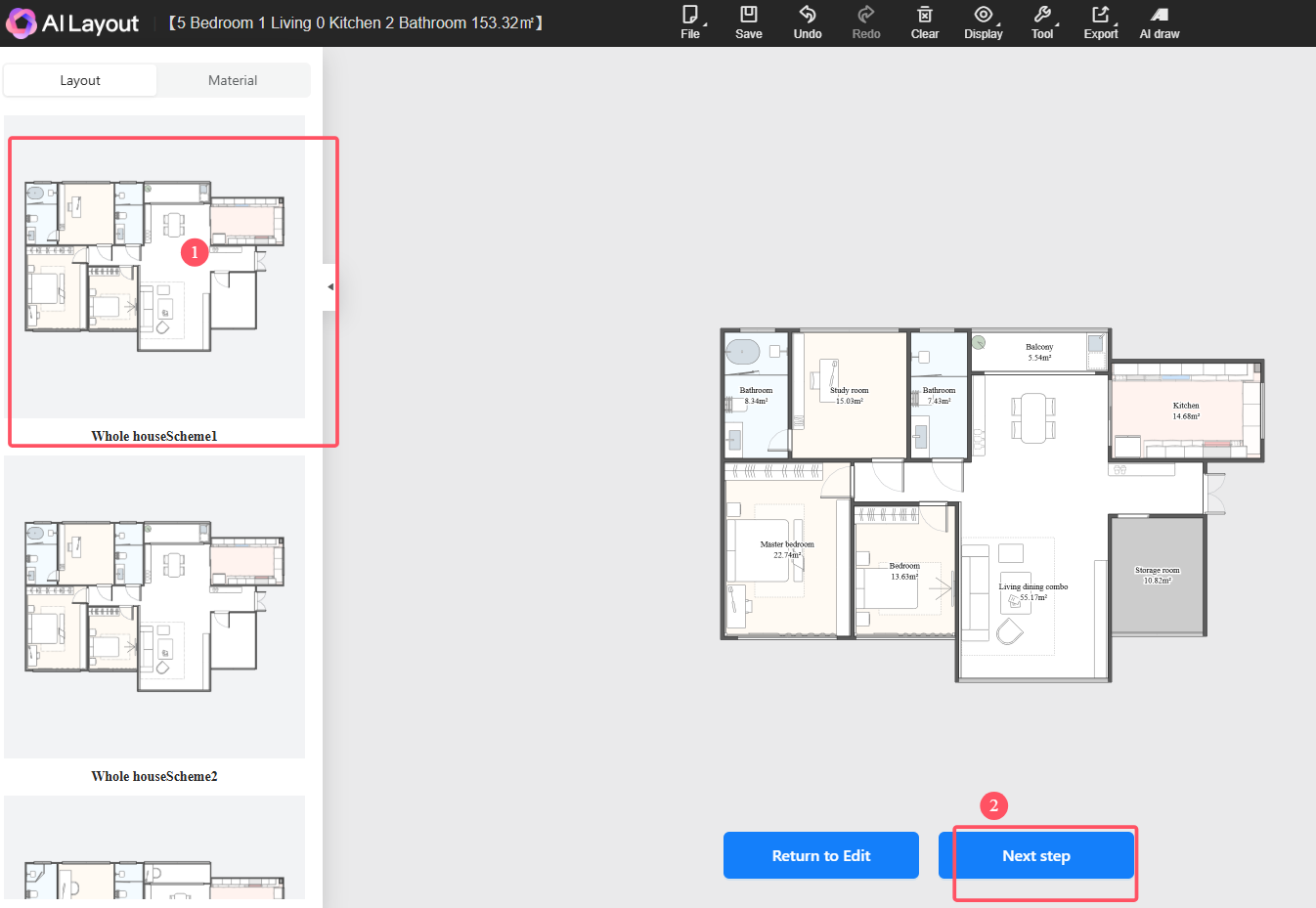

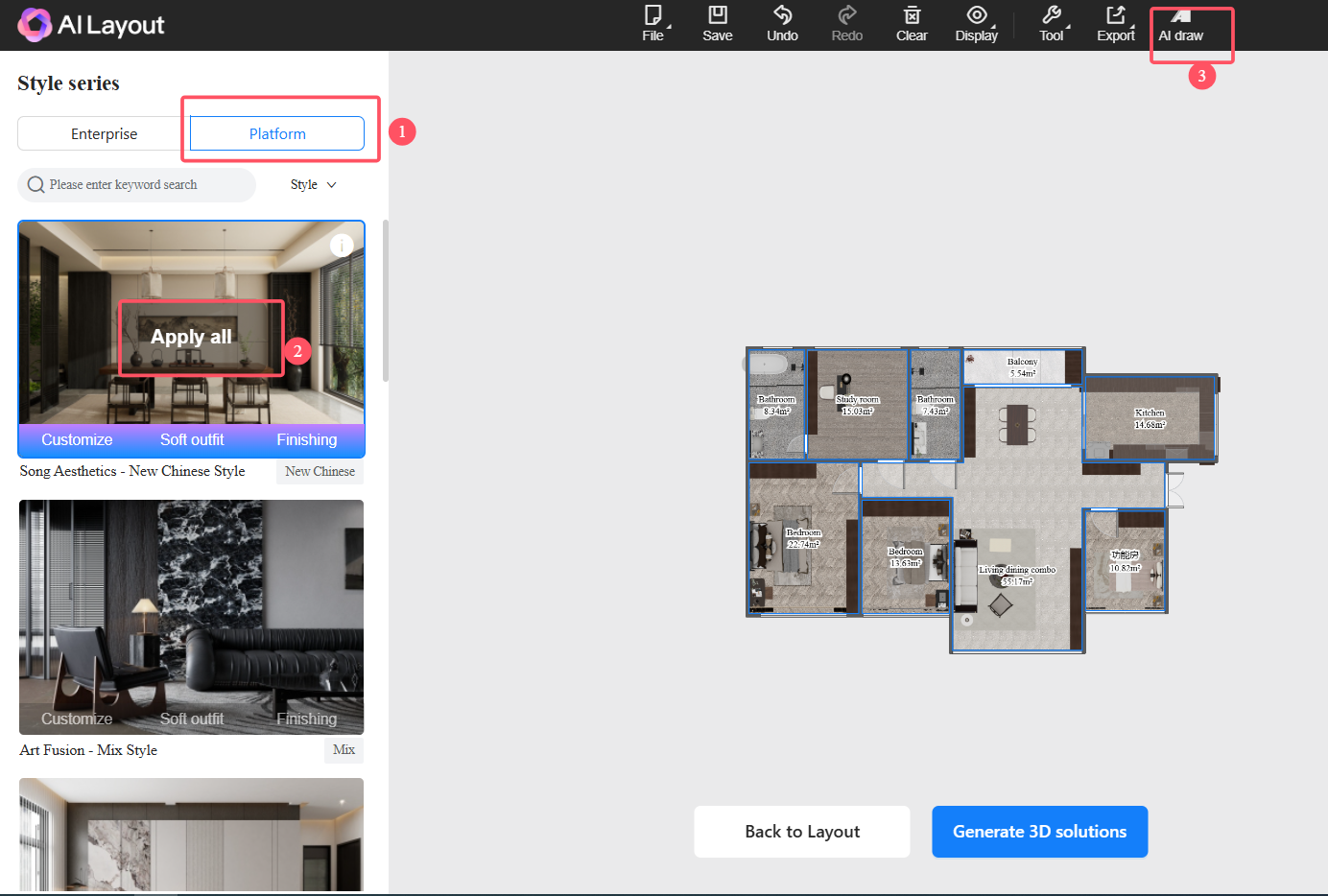

AI drawing-Select Layout-Select Style-Top Menu > AI Draw.

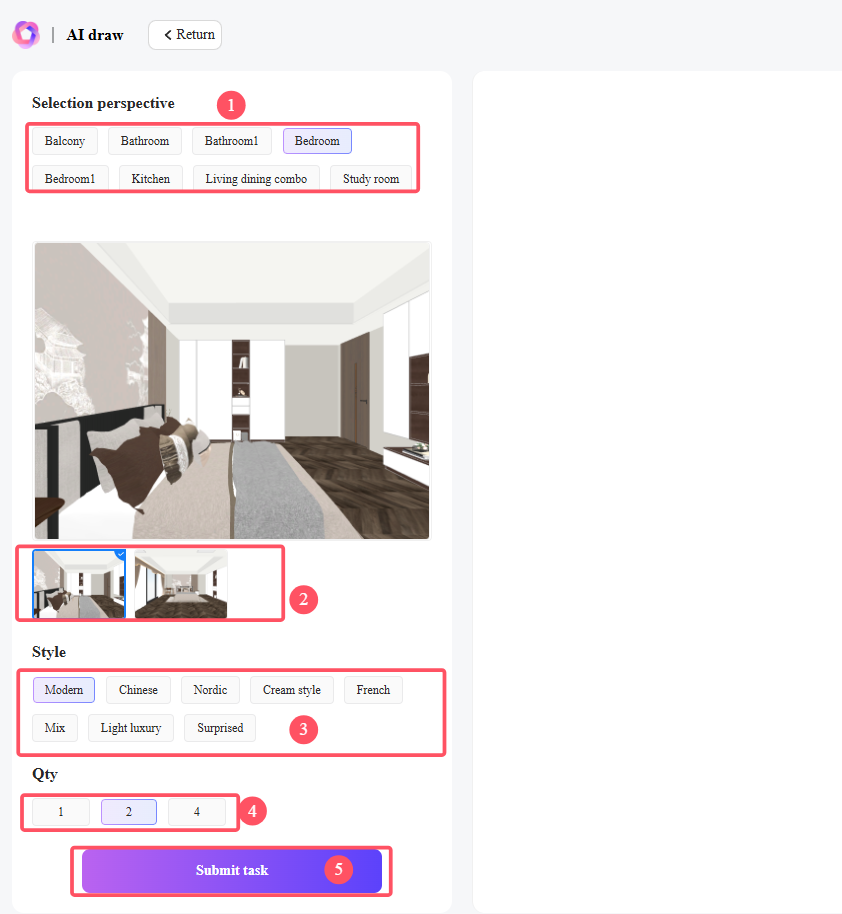

Select Space, Perspective, Quantity > Submit Task.



5.2 Exterior Wall Annotation

Highlights:
Automatically annotates exterior walls with precision, clearly presenting critical elements (walls, doors, windows) to provide accurate references for designers, construction teams, and others.
Problems Solved:
Eliminates traditional floor plan annotation issues: manual measurement errors, missing annotation and incomplete information.
Feature Value:
Unified Standards: Intelligent recognition ensures consistent information formatting.
Reduced Communication Costs: Minimizes miscommunication across teams.
Efficiency & Precision: Dramatically improves workflow speed and accuracy.

5.3 Update Countertop(for All - New)

Highlights:
After using the kitchen layout and DIY cabinet by yourself, use update countertop to regenerate the countertop position.
Step:





6 AI Video Credit Consumption

AI Video consumes Render Credits at twice the rate of standard video rendering, requiring 1 credit per 5-second segment
